our company produces aluminum charger, reliable quality, quality priority, repair rate is very low, export certification is complete. Welcome to inquire!

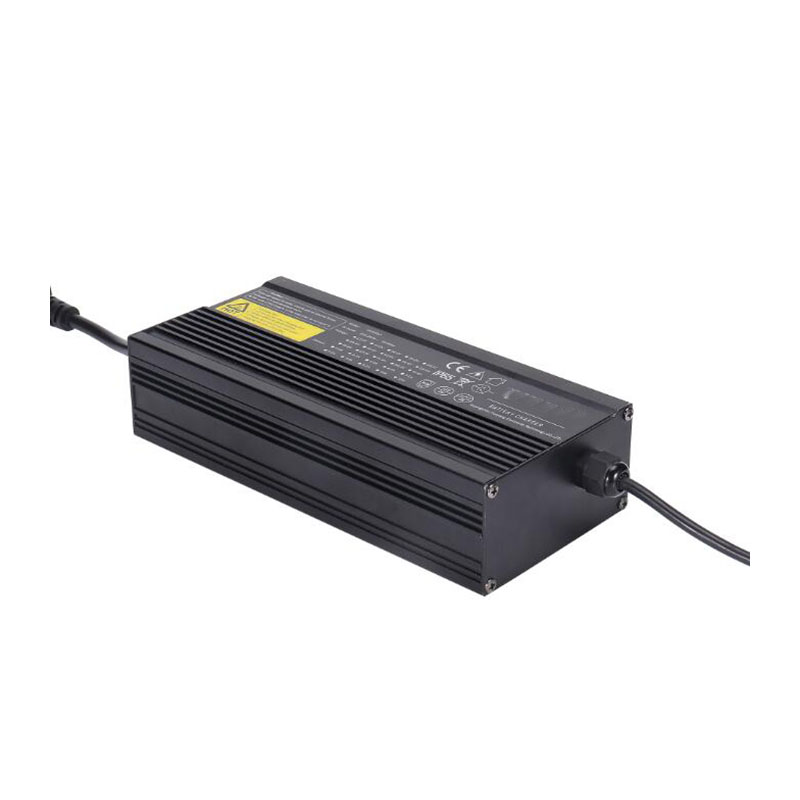

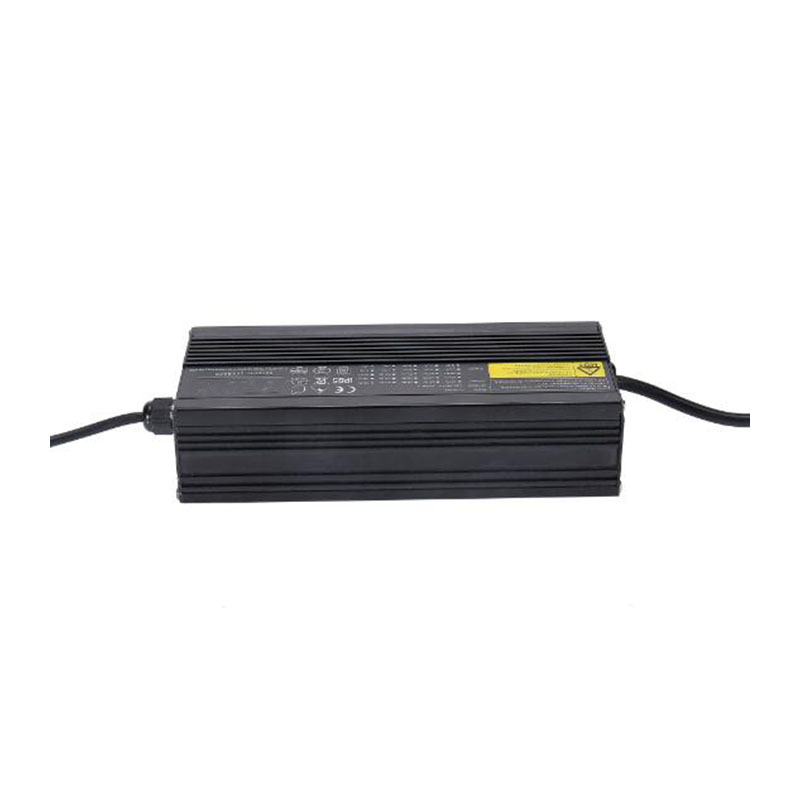

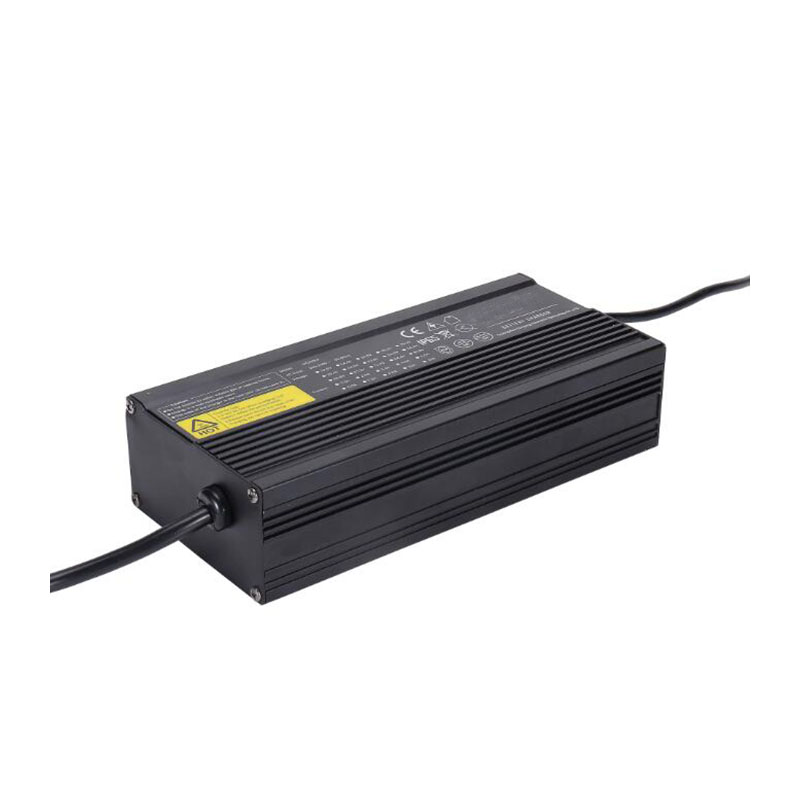

manufacturers supply IP65 waterproof charger 60V4A lithium iron phosphate battery 20 strings 73V with CE certification
Model: UY300LP
Overall dimensions: 200x93x49mm
Battery type: 60V lithium battery, lithium iron phosphate battery, lead-acid battery
Working power supply: 90-264Vac ,50~60Hz
PF value: 0.95
Waterproof pole: IP65
Suitable for battery voltage: 60V
Output voltage: 73V (charging voltage can be customized according to requirements)
Output current: 4A
Charging mode: constant current-constant voltage-trickle (floating charge) three-stage intelligent charging
Charging efficiency: 90% (full load)
Working temperature:-20 ~ 40
Storage temperature:-40 ~ 70
AC power cord, DC connector can be customized according to requirements.
Product Certification: FCC/UL/CB/CE
Performance characteristics:
1. Three-stage charging working mode-constant current, constant voltage, trickle current (or floating charge)
2. Safety design. On the basis of power supply safety specifications, it is equipped with short circuit, overcurrent, overvoltage, and reverse connection protection, automatic monitoring of current, conversion of charging mode, and safer use.
| electronic 300W charger UY300LP series specification table |
Serial Number | Specifications | Charging constant voltage (limiting voltage) | Charging constant current | Transition/Shutdown | Weight | Dimensions |
lead acid | lithium manganese | lithium iron | (Current Limit) A | Lead acid (A) | Lithium battery (A) | (kg) | (mm) |
1 | 12V15A | 14.7V | 16.8V | 14.6V | 15 | 3 | 1.2 | 2.5 | 200x93x49 |
2 | 24V10A | 29.4V | 29.4V | 29.2V | 10 | 2.0 | 0.8 |
3 | 36V7A | 44.1V | 42.0V | 43.8V | 7 | 1.75 | 0.56 |
4 | 48V5A | 58.8V | 54.6V | 58.4V | 5 | 1.25 | 0.40 |
5 | 60V5A | 73.5V | 71.4V | 73.0V | 4 | 1.0 | 0.32 |
6 | 72V3A | 88.2V | 84V | 87.6V | 3 | 0.75 | 0.24 |
Characteristics | 1 | Automatic, surge charging, flat charging, trickle charging, full automatic shutdown |
2 | High-precision current and voltage lock, ensure full, no overcharge |
3 | Over-current, over-voltage, short-circuit protection, safe and reliable |
4 | Conversion efficiency> 90%, small volume. Light weight. Efficient environmental protection |
5 | Indicator light display, all aluminum shell, beautiful and sturdy, durable |
6 | European CE, environmental protection ROHS, safety certification, export quality, PFC circuit, waterproof IP65 |
The lithium battery shutdown current is set to 5% of the charging constant current by our company, and can be set to 3-10% of the charging constant current according to the battery characteristics. |
