our company produces aluminum charger, reliable quality, quality priority, repair rate is very low, export certification is complete. Welcome to inquire!

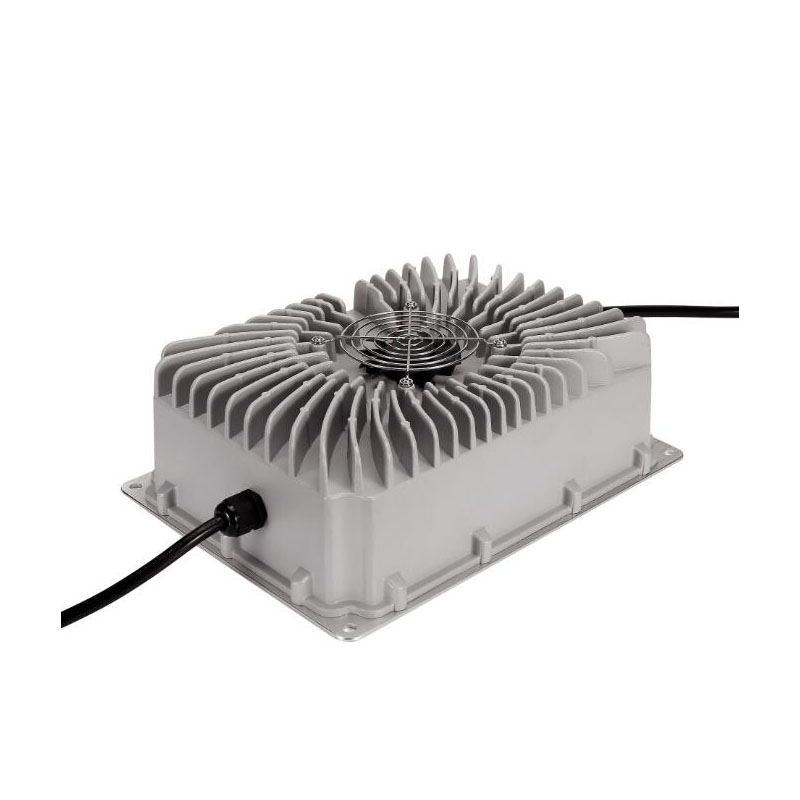

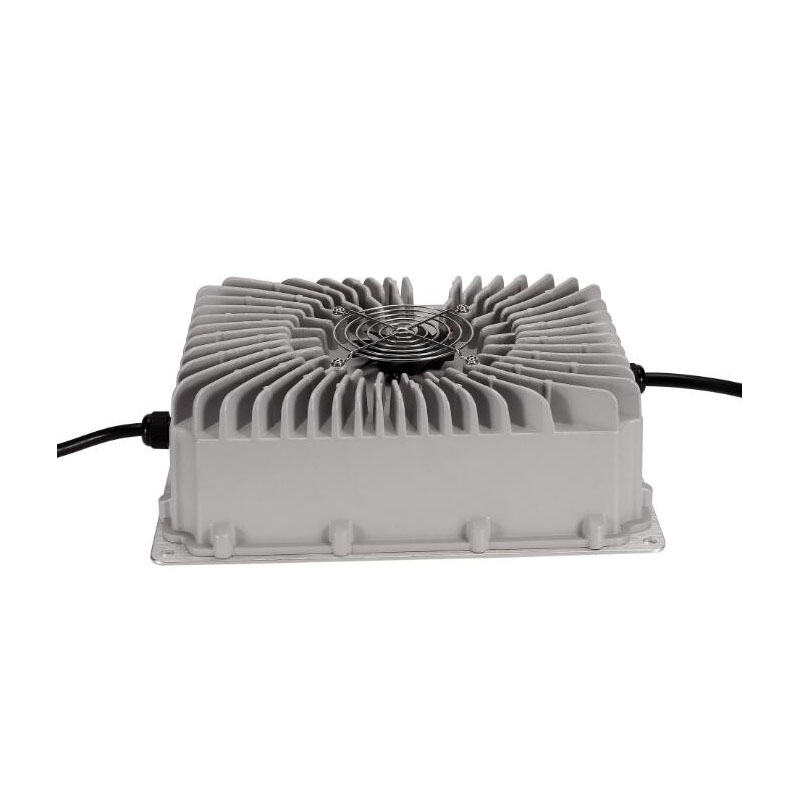

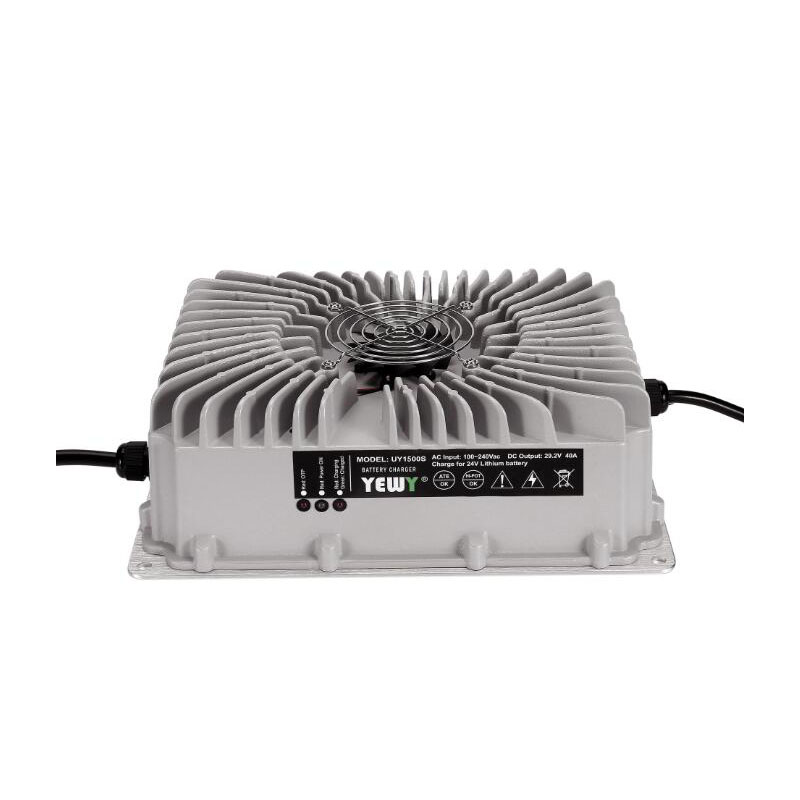

Factory supply 36V30A waterproof PI65 charger
Model: UY1500SOverall dimensions: 310x230x102mm
Battery type: lithium battery, lithium iron phosphate battery, lead-acid battery
Working power: 200-260Vac ,50~60Hz
PF value: 0.95
Waterproof pole: IP65
Suitable for battery voltage: 36V
Output voltage: 42V (charging voltage can be customized according to requirements)
Output current: 30A
Charging mode: constant current-constant voltage-trickle (floating charge) three-stage intelligent charging
Charging efficiency: 90% (full load)
Working temperature:-20 ~ 40
Storage temperature:-40 ~ 70
AC power cord, DC connector can be customized according to requirements.
Performance characteristics:
1. Three-stage charging working mode-constant current, constant voltage, trickle current (or floating charge)
2. Safety design. On the basis of power supply safety specifications, it is equipped with short circuit, overcurrent, overvoltage, and reverse connection protection, automatic monitoring of current, conversion of charging mode, and safer use. Can be added as required.CAN,485 communicationAdd special features.
| electronic 1500W charger UY1500S series specification table |
Serial Number | Specifications | Charging constant voltage (limiting voltage) | Charging constant current | Transition/Shutdown | Weight | Dimensions |
lead acid | lithium manganese | lithium iron | (Current Limit) A | Lead acid (A) | Lithium battery (A) | (kg) | (mm) |
1 | 12V60A | 14.7V | 16.8V | 14.6V | 60 | 15 | 4.8 | 7.5 | 310x230x102 |
2 | 24V45A | 29.4V | 29.4V | 29.2V | 45 | 9 | 3.6 |
3 | 36V30A | 44.1V | 42.0V | 43.8V | 30 | 7.5 | 2.4 |
4 | 48V25A | 58.8V | 54.6V | 58.4V | 25 | 6.25 | 2.0 |
5 | 60V20A | 73.5V | 71.4V | 73.0V | 20 | 5 | 1.6 |
6 | 72V16A | 88.2V | 84V | 87.6V | 16 | 4 | 1.28 |
Characteristics | 1 | Automatic, surge charging, flat charging, trickle charging, full automatic shutdown |
2 | High-precision current and voltage lock, ensure full, no overcharge |
3 | Over-current, over-voltage, short-circuit protection, safe and reliable |
4 | Conversion efficiency> 90%, small volume. Light weight. Efficient environmental protection |
5 | Indicator light display, all aluminum shell, beautiful and sturdy, durable |
6 | European CE, environmental protection ROHS, safety certification, export quality, PFC circuit, waterproof IP65 |
The lithium battery shutdown current is set to 5% of the charging constant current by our company, and can be set to 3-10% of the charging constant current according to the battery characteristics. |
